Specifications

Splicing Method	Core Alignment DCA(Digitalized Cladding Alignment)

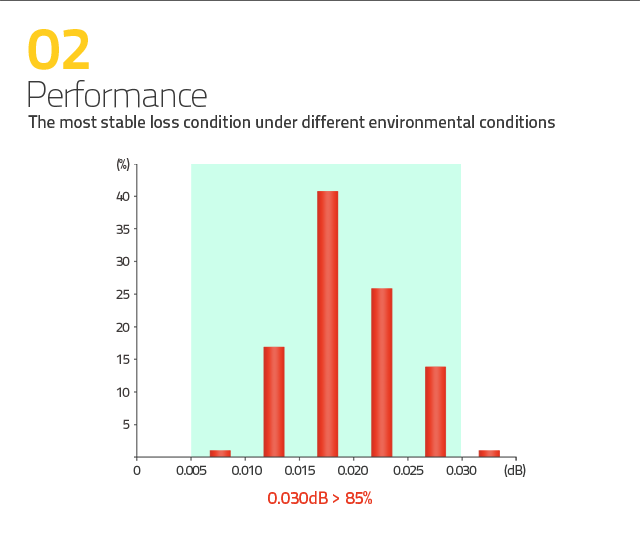

Average Loss	SM(0.03dB) / MM(0.01dB) / DS(0.05dB) / NZDS(0.05dB) / G.657(0.03dB)
Return Loss	>>60dB
Splice Time	12s average SM / SM 8s Quick mode
Electrode Lifespan	>3,500 arcs
Applicable Fiber	SM(ITU-TU.625, MM(ITU-TU.651), DS(ITU-T G.653), NZDS(ITU-T.655), G657A, G657B 0.25mm,0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable)
Cleaved Length	Coating Diameter 0.25mm = 8-16mm minimum
Coating Diameter	100-1000um
Cladding Diameter	80-150um
Heating Programs	40mm, 60mm, SOC-3.0, SOC-0.9
Heating Time	Typical 20s
Protection Sleeve	40mm, 60mm, SOC-3.0, SOC-0.9
Data Output	Micro HDMI-USB master device
Splice Programs	7 user modes
Splice Memory	Up to 2000 records
Battery	Typical 130 Cycles(splcing & heating)
Power Supply	AC 100-240V input or DC 9~14V
Monitor	Color 4.3’’ LCD monitor, with Tempered Glass
Cameras	2 CCD camera system
Magnification	XY : 150 times , X/Y : 300 times
Fiber Display	X/Y or XY, single X.Y
Weight	1.35Kg (without battery)
Size	124mm X 123mm X 130 mm
Wind Protection	The max wind speed 15m/s
Operating Environment	Elevation 0-5000 meters, -40~80˚C, 0~95% relative humidity
Storage Condition	Temperature -40 to 80˚C, 0~95% relative humidity, battery -20~30˚C
Pull Test	1.96~2.25N (standard)
